Category :Bellow Gate Globe

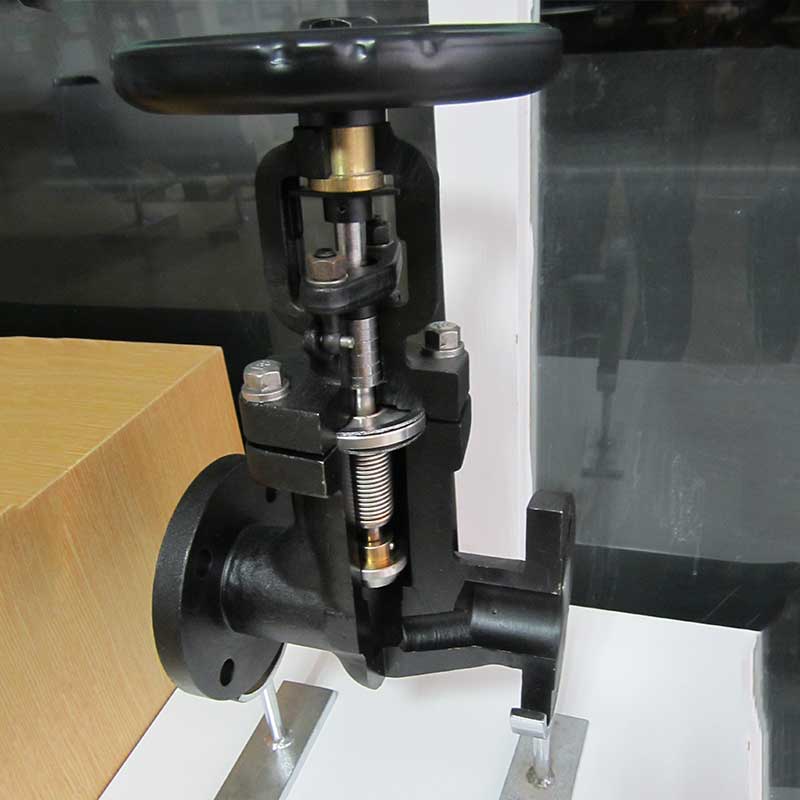

ROYEON has two bonnet designs for forged Bellow sealed valve. :1.bolted bonnet 2.welded bonnet . All components are manufactured using CNC machine centers to ensure high quality.

Features and benefits

Full port or conventional port

Outside screw and yoke(OS&Y)

Integral backseat

Socket weld ends to ASME B16.11

BW weld ends to ASME B16.25

Screw ends to ANSI/ASME B1.20.1

Flange ends to ANSI/ASME B16.5-RF/RTJ

Product Range

Type:Bellow Seal Gate Valve

Size ： 1/2~2”

Rating ： 150~1500LB

Materials ： A105N,  F304，F316, F304L, F316L, F321, F347

Bellow Material:321SS,316SS,304SS,INCONEL 625,MONEL,Hastelloy etc.

End connection ： NPT, SW, RF, RJT, BW
